BPU21 Cheap Laptop Black And White Veterinary Ultrasound Scanner
System For Pets Or Farm Animals
Product Description
This product is specially designed for animals. We have Wide-angle
imaging, Panoramic focusing technology, Dynamic imaging
technologies, Tissue Harmonic Imaging, Cloud processing technology,
Image enhancement, Tissue Specific Imaging and Crystal-clear
Image.It has 1.6 Two active universal transducer ports.
Product Specification
| Technical platform | Based on Linux, stable performance, security data |
| Machine size | 308 x 310 x 66mm |
| Packaging size | 49x 46 x25 cm |
| Weight | machine weight about 3.4kg (with probe) |
| Monitor | 12.1” LED monitor;
Resolution: 1024*768
Brightness Adjustable |
| Image mode | B, M, 2B, B/M, 4B,PW(optional),Color(optional) |
| Gray scale | 256 |
| Scanning depth | 351mm |
| Transducer frequency | 2-12 MHz |
| Digital technology | Wide-angle imaging
Panoramic focusing technology
Rolling M technology |
| Battery | Lithium-Ion, 3900mAH
Charge to full: 6 hours
Duration: 3-4 hours real time scan |
| Power supply | 100-240V~ 50/60Hz, <80VA |
| Peripheral ports | 1 BNC video port,
2 USB ports
1 networking-port
1 power inlet port
DICOM: DICOM3.0
Print: by video printer, Or by laser Printer |
| Language | Software: English, Chinese, Spanish, Russian, Italian, Czech, and
more (ODM support!)
Keyboard Input: English, Chinese, and more (ODM support!)
User Manual: English, Chinese |
Common Feature
- Pam Zoom: Stepless zoom for the active image
- One-key Optimize
- Rolling M technology
- Biopsy
Imaging Processing
Digital technology:
Wide-angle imaging
Panoramic focusing technology
Dynamic imaging technologies
Tissue Harmonic Imaging
Cloud processing technology
Image enhancement
Tissue Specific Imaging
Crystal-clear Image
B Mode
8-segment TGC
Gain (30-120dB)
Dynamic range
Persistence
M Soften
Noise suppression
Gray Map
Pseudo Color Map
Left/right reverse
Up/down reverse
Measurement & Calculations
- B mode: Distance, angle, area, volume, trace length, distance ratio
- M mode: Distance, time, slope, HR
- Software packages: Abdomen, OB, gynecology, small Part
Probe Specification
| Probe Type | Radius/ Footprint | Frequency Range(MHz) | Human / vet | Clinical application |
| Convex | R60 | 2.0 MHz /3.0 MHz /3.5 MHz /4.5 MHz /6.0MHz | both | Abdomen, Obstetrics, Gynecology, Kidney, Urology |
| Linear | L40 | 5.0 MHz /6.0 MHz /7.5 MHz /9.0 MHz /12.0MHz | both | Vascular, Small parts, Muscleskeletal, Carotid, Nerve, Orthopedic |
| TV | R10 | 4.5 MHz /5.0 MHz /6.5 MHz /7.5 MHz /10.0MHz | both | Gynecology, Obstetrics, Urology |
| Micro Convex | R15 | 4.5 MHz /5.0 MHz /6.5 MHz /7.5 MHz /10.0MHz | both | General small abdomen and cardiac Equine musculoskeletal and
abdomens |
| Linear transrectal | L64 | 5.0 MHz /5.5 MHz /6.5 MHz /7.5MHz /10.0MHz | vet only | Equine and bovine reproduction Equine musculoskeletal Fish-sexing,
egg determination |
Other business terms
Product configuration
- Standard configuration:
- Main unit
- Adaptor
- Power cable
- User's Manual
- Optional accessories:
- Mobile trolley
- Wheeled transport case
- DICOM 3.0
- Digital B/W Video Printer: MITSUBISHI P93W/ SONY UP-895MD
- Graph / text printer

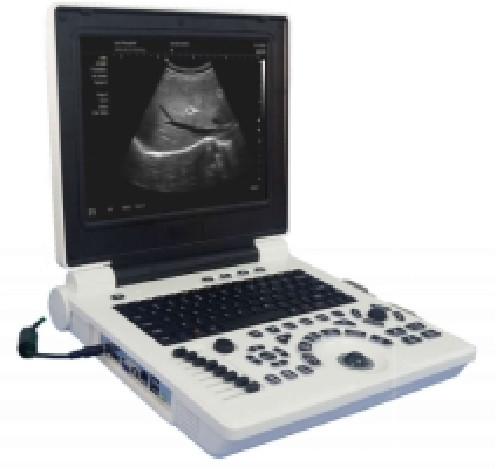

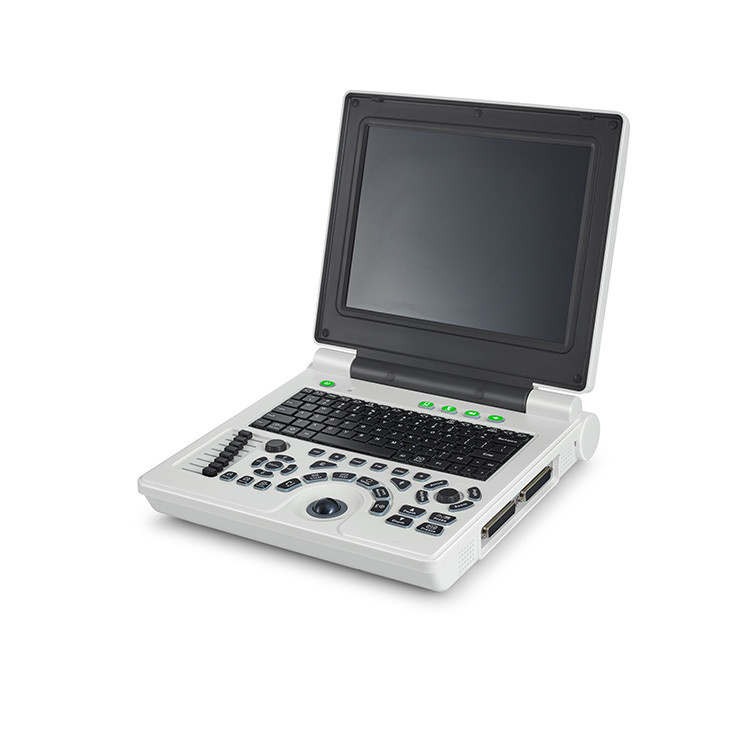

Product Picture
