DS 8 Portable Breathing Apparatus Respirator Sleep Apnea Bi-Level
Ventilator Bipap Machine Avaps Cpap Equipment
Product Description
The BiPAP is indicated for the treatment of obstructive sleep apnea
(OSA)/ central sleep apnea (CSA)/ mixed sleep apnea (MSA) in
patients weighing more than 66 lb (30 kg).
BiPAP is a method of breathing support that is often used to treat
central sleep apnea and central sleep apnea (both OSA and CSA).
Many of the components of a BiPAP machine are the same as the
standard CPAP machine.
It can provide the correct airway pressure to prevent or even
correct disordered breathing such as all kinds of sleep apnea,
hypopnea, air flow restrictions, COPD and snoring.
Ventmed Bi-level Positive Airway Pressure (BiPAP) with EPR
(Expiratory Pressure Relief ) offers the ultimate in sleep therapy
comfort. It combines auto adjusting pressure delivery with the
breath-by-breath pressure relief for most natural sleep therapy. It
also can provide non-invasive ventilation for patients with
respiratory insufficiency in the hospital or home.
Product Specification
Product Name | DS-7(ST25) | DS-8(ST30) |
Model | CPAP, Auto, S, T, ST | CPAP, Auto, S, T, ST, APCV |
Color | Grey |
Machine Dimensions(cm) | 28L x 14W x 9.5H |
Carton Dimensions(cm) | 38L x 36W x 16H |
Gross Weight | 1.6KG for host, 3.9KG included all accessories and packing carton |
Power Supply | Input 100-240V, 50-60Hz, 2-1A, Output +24V, 2.5A |
Screen | 2.8 inch TFT, 320 x 240 |
Screen Auto Sleep | Auto sleep in 15 minutes, press any button to highlight screen |
Over-Temperature Protection | Motor will stop work automatically and buzzle will ring 4 times
when temperature is over |
Button Press and Power off Sound | Yes |
Data Storage | SD Card |
DC Voltage | 24VDC |
DC Current | 2.0A maximum |
Sound | <28db |
Pressure Range | 4-25 cmH2O | 4-30 cmH2O |
IPAP | 4-25 cmH2O | 4-30 cmH2O |
EPAP | 4-20 cmH2O | 4-20 cmH2O |
Pressure Compensation | Yes |
Backup Rate | 5-50min, adjustable |
I/E | 10-80% |
Ramp Item | 0-60min adjustable 1min/Step |
Auto ON | Yes |
Auto OFF | Yes |
Inspirate Triggle | 1-5 Level |
Expirate Level | 1-5 Level |
Inspirate Sensitivity | 1-5 Level |
Expiration Pressure Relief(EPR) | Yes |
Auto-Altitude | Yes |
Leak Compensation | Yes |
Awake Detection | Yes |
Breath Event Detection | Yes |
Auto Pressure Titration | Yes |
Mask Off Alarm | When mask is off, will Beep till mask put on or power off. |
Power Off Alarm | If power is off when the machine is working, will make a warning
sound over 30 seconds |
Water Capacity | 220ML max |
Humidifier Level | 0-5 level |
Humidifier | Integrated Heated Humidifier |
Common Feature
AST(Automatic Synchronization Technology) anticipates respiratory
waveform and provides corresponding EPAP and IPAP to ensure
patient's comfort and mechanical synchrony.
SD card or Cellular(available per customers' request).
Product Structure
1-Air outlet | 2-SD card |
3-Power interface | 4-Air inlet |
5-Humidification tank | 6-Humidification tank switch |
7-Display | 8-Switch button |
Use Method
Do Not Overfill The Water Tub as Water May Enter The Device And Air
Tubing!
1. Place the device on a stable level surface.
2. Plug the power connector into the rear of the device. Connect
one end of the power cord into the power supply unit and the other
end into the power outlet.
3. Connect the air tubing firmly to the air outlet located on the
rear of the device.
4. Open the water tub cover and fill it with distilled water up to
the maximum water level mark. Do not fill hot water in the water
tub.
5. Close the water tub cover.
6. Connect the free end of the air tubing firmly onto mask. For
detailed information, read the mask user guide.

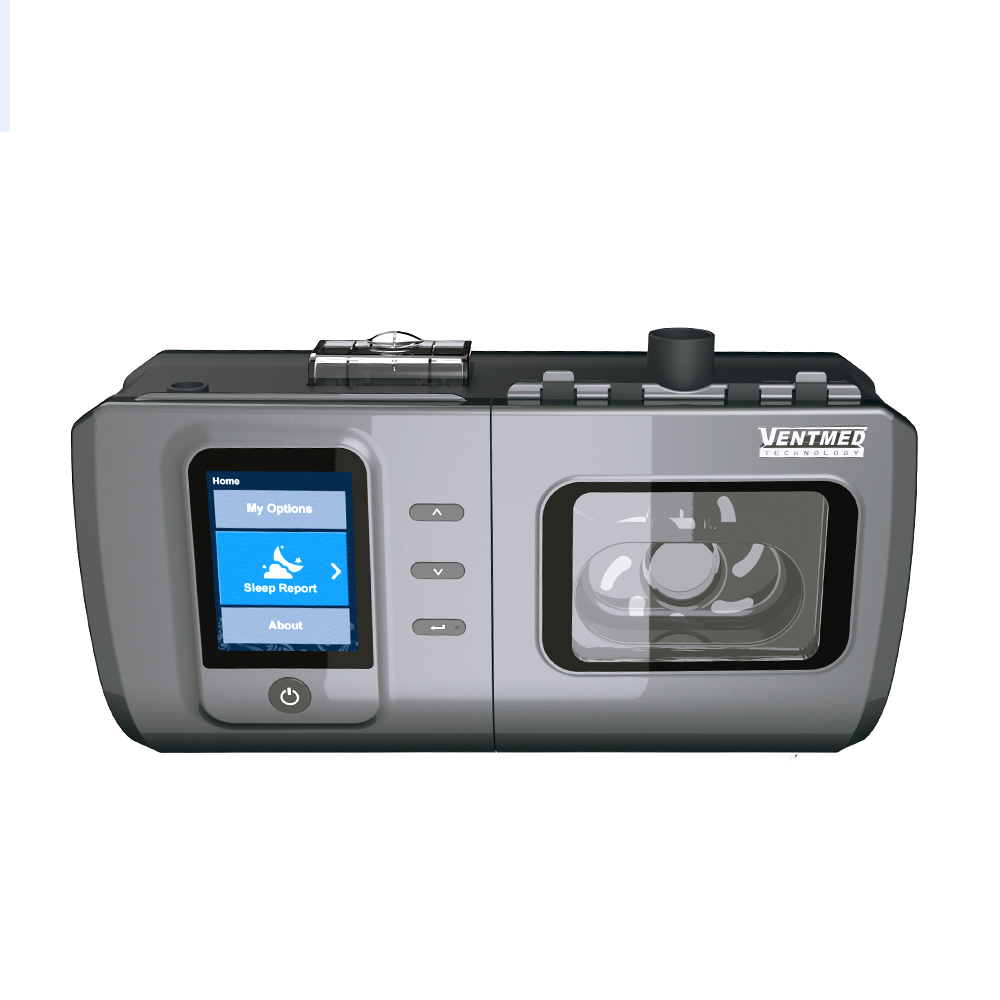

Product Picture
